High Self - Priming Micro Water Pump Dry Run Sprayer Super Silent

Shenzhen Yanhua Faith Technology Co., Ltd.

High Self - Priming Micro Water Pump Dry Run Sprayer Super Silent

Brand Name : Feiyinsi

Model Number : S712-15A-2000

Certification : Rohs,Reach

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : Western Union, , T/T, L/C,paypal

Supply Ability : 3000pcs per day

Packaging Details : Export carton, carton's dimension:47*31*25cm

Basic Materials : PC/PPS/POM, EPDM,hardware

Working way : Continuous or intermittent

Weight : 600g

size : 66*85.5*116mm

Power : Electric

Motor : DC brush motor

Model : S712-15A-2000

pump name : sprayer pump

Contact Now

high self-priming function dry run sprayer pump in water transfer utility

Compared with the large vacuum pump, it has the following advantages: small size, low noise, low power consumption, easy operation, easy to carry, no maintenance, 24 hours continuous operation, and allows medium to be rich in water vapor. Most importantly, because it is dry, oil free, no vacuum pump oil or lubricating oil, it will not pollute the working medium, do not interfere with the medium analysis and so on. And the price is much cheaper.

When use micro pump in pumping water, but do not want to pump water by manual addition of "diversion". Some pumps require manual "diversion" before work, so that the pump can pull up the low water, otherwise the pump can not pump water or even be damaged. The advantage of our company pump is that when it is not in contact with water, it pump vacuum, then pressure the water up by air pressure, and then begins pumping water.

Miniature pumps pump water, but sometimes the pump may not be able to pump water, in a "dry run" state. Some traditional pumps fear "dry run", even fatal. Our company's pump is essentially a composite functional pump, it integrates the functions of vacuum pumps and water pumps, some people call it "vacuum water pump." So, in the absence of water, it pumps vacuum, and when there is water, it pumps water. No matter the pumping air state or the pumping water state, belong to the normal working category, there is no "dry run" damage.

Product Description

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

sprayer pump's parameter and features

Model: S712-15A-2000 ​​

Size(mm): 66*85.5*116

Voltage:(V/DC) 6V/9V/12V/24V

No-load current:(mA) 300

Load current:(A) 1

Free Flow:(L/M) 3

Self-priming height:1m

Lift(m): 2

Weight: 600

sprayer pump's demension

High Self - Priming Micro Water Pump Dry Run Sprayer Super Silent


Unlabeled tolerance is ± 0.1mm.

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 3 L/min and 3.5L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

sprayer pump's details show

1. High temperature performance, good consistency

2. Oil resistance and easy installation

3. DC brush motor

4. Long life span, low heat.

5. Heavy duty work for 24 hours and Continuous operation

6. The key parts are imported

7.Can work for long hours

sprayer pump's application

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

sprayer pump's packing and shipping

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

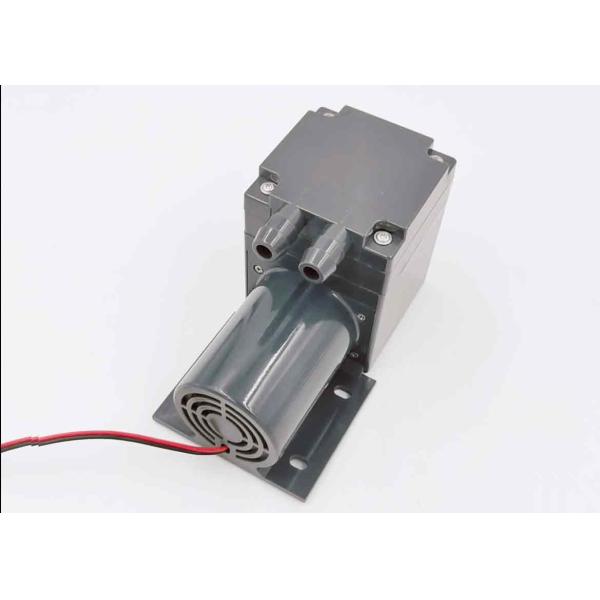

sprayer pump's picture

High Self - Priming Micro Water Pump Dry Run Sprayer Super Silent

Company Information

The factory long-term supply micro pumps to the large manufacturers. The micro pump is widely used in home appliances, electronics, cars, vacuum preservation, health care, robot supporting, a variety of environmental monitoring instrumentation and other fields. The working life of our products goes through a variety of environmental testing. The customer's requirements with our own unique technology and design can meet a variety of special industries’ needs( such as high temperature, long life , anti- electromagnetic interference , low noise , oil resistance and other special requirements ) . The company's products are exported to Europe, America , Asia, Taiwan and other places .

RFQ

Q1: Are you a factory or trading company?

A1: We are a factory.

Q2: Can I get a sample? How long it will take to get a sample?

A2: Yes, you can order sample to test and check the quality.

For our usual sample, the sample lead time is about 3-5days.

If special sample, it will take a longer time for design and order materials to do pumps.

All our samples are done by our engineers.

They can according to your needs customize pump for you.

Q3: How can I make the payment?

A3: Payment can be made through T/T, paypal or Western Union.

Q4: Is it OK to print our logo on Pump?

A4: Yes, we could do OEM and print your logo on Pump product.

Q5: What about the package ?

A5: Standard export carton.

Q6.: The use of products have?

A6: The pump can pump various strong acid, alkali and corrosive air etc.

Q7: How product quality and service?

A7: Our pump have CE certificate, quality assured and provide various personalized needs.

Q8: How to proceed an order for Mini Air Pump?

A8: (1) Checking /confirming all details information( include requirement of pump product, payment terms, price,quantity, leading time or others);

(2) Checking/confirming the sample's quality or satisfied result;

(3) Final checking/confirming the price/quantity/leading time/payment terms for first trial order;

(4) We factory arrange the production after receiving the real pump order.
